TPI-9070 Smart Vibration Meter

AllVibration MeterTPI (Test Products International, USA)

Previous 7 / 7 Next

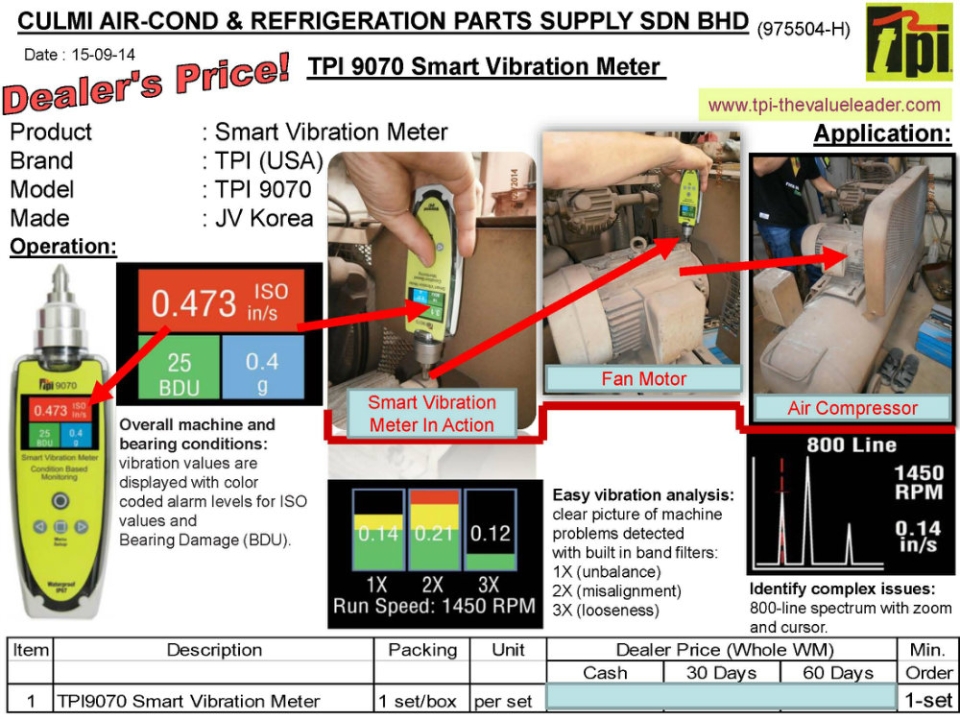

TPI-9070 Smart Vibration Meter
APPLICATION AND USAGE
APPLICATION AND USAGE
APPLICATION AND USAGE
APPLICATION AND USAGE
APPLICATION
TPI 9070 SMART VIBRATION METER (8-2-2022)
TPI 9070 SMART VIBRATION METER (8-2-2022)
TPI 9070 SMART VIBRATION METER (BATTERY) JUL'19
TPI 9070 SMART VIBRATION METER (BATTERY) JUL'19
TPI 9070 SMART VIBRATION METER (BATTERY) JUL'19
TPI 9070 SMART VIBRATION METER (BATTERY) JUL'19
TPI 9070 SMART VIBRATION METER (BATTERY) JUL'19
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS
TPI-9070 Smart Vibration Meter
TPI-9070 Smart Vibration Meter
TPI-9070 Smart Vibration Meter
TPI-9070 Smart Vibration Meter

TPI Model 9070 Smart Vibration Meter DemoTPI Model 9070 Smart Vibration Meter
TPI-9070 Smart Vibration Meter = RM3,695.00 Per Unit (23-3-2024=AAA20.6679)



Accessories (Under Purchase)

A9073 MAGNET FOR TPI9070 AND TPI ACCELEROMETERS

Local (Malaysia) Calibration Service With Certificate To Be Provided Is Accredited To ISO 17025 Vibration Field Of Scope

1) The Calibration Calibrated According To ISO 16063-21
2) Documented Calibration Method Using Amplitude Response On Acceleration, Velocity & Displacement
3) Service Charge For One Unit For TPI-9070 = RM1,125.00 (27-4-2022=20)
4) Duration For Calibration Process = 7 Working Days From 100% Advance Payment




Bearing & Lubrication Problems? High Maintenance Costs? Reliability Issues?

If you have pumps, motors, fans, and/or conveyors it’s time to see how TPI Vibration Analyzers can keep your operation up and running. Protect machines from worn bearings, faulty gearboxes, unbalance, misalignment, and looseness; all of which can cause failures, increased power consumption and costly downtime.

TPI Vibration Analyzers will detect signs of machine failure, allowing machinery to be repaired or replaced before an expensive breakdown occurs.

Analyze and Interprets readings…Incredible performance at an unbelievably low price

Overall machine and bearing conditions:
vibration values are displayed with color
coded alarm levels for ISO values and
Bearing Damage (BDU).

Easy vibration analysis:
clear picture of machine problems detected
with built in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness)

Identify complex issues:
800-line spectrum with zoom and cursor.

Note:
For 300kw (Input) Motor Measurement.

Model 9070 Specifications
 Size  H 7.95” W 2.36”
 Weight  9.8oz (280g)
 Environmental  Water: IP67 Waterproof

 Operating: 32°F to 122°F (0C to 50C)

 Storage: -4°F to 158°F (-20C to 70C)
 Power Supply  2xAA batteries
 Battery life  Approximately 50 hours of normal use
 Frequency ranges:  2/10Hz - 1kHz ISO
 2Hz - 3kHz
 Frequency resolution:  100 / 200 / 400 / 800 lines
 Displayed amplitude units:  Acceleration in g / velocity in inches per second or mm per second /
 Bearing damage in BDU
 Displayed frequency units:  Hz, CPM or RPM
 Input range:  +/- 50 g
 Dynamic range:  72 dB
 Auto set up of VA bands  2Yes
 Accelerometer connection:  Internal sensor
 Standard Accessories  Pouch with protective cap for pointed stinger
 Optional Accessories  Magnet
