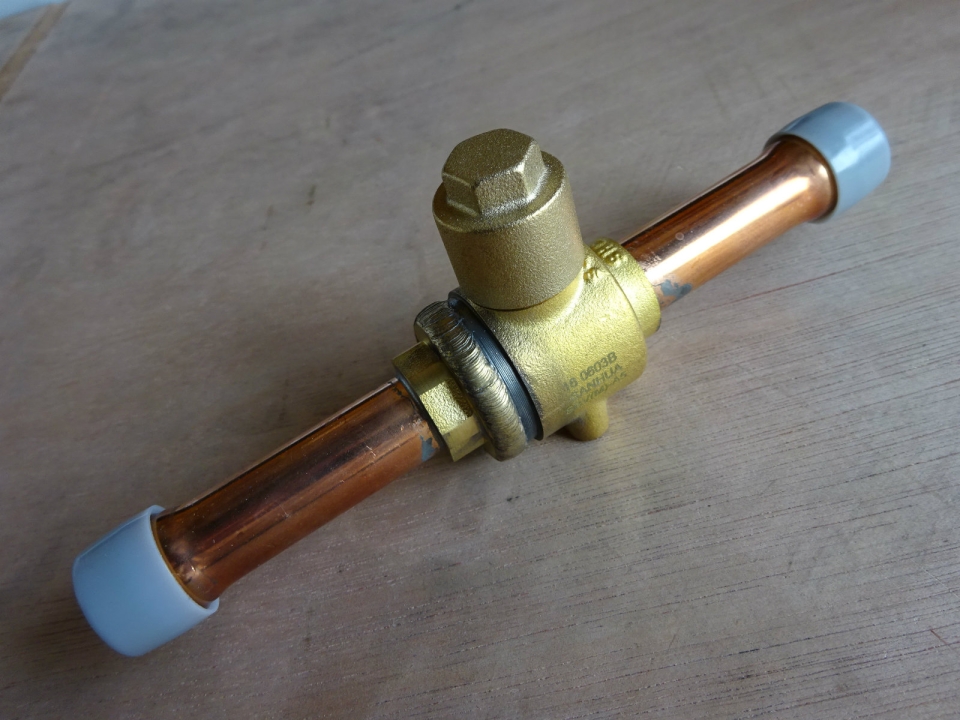

+603-8024 7387SANHUA SBV SERIES (W/O & WITH ACCESS VALVE) ODF (BRAZING) BALL VALVE
| Previous | 10 / 10 | Next |
SANHUA BALL VALVE OPERATION
Download Files
Ball_valve_tehcnical_comparison_chart.pdf (165.61 KB)Sanhua_Ball_Valve_(SBV)_Series_Product_Catalogue.pdf (1.39 MB)
Sanhua_Ball_Valve_Instruction_Manual.pdf (798.55 KB)
SANHUA SBV SERIES (W/O ACCESS VALVE) & (WITH ACCESS VALVE) ODF (BRAZING) BALL VALVE
General Specification
General Specification
- Applicable for all common HCFC and HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507A....
- Medium temperature TS min./max.: -40 °C / +120°C
- Max. operating pressure PS: 4,5 MPa (45 bar / 652.67 psi)
- Installation position: liquid, suction and discharge line in all directions
- Certifications: UL/CSA and PED declaration
1) SANHUA SBV02-019 BALL VALVE 1/4''ODF (PCN: SBV-13002) / 10150091902) = RMPER PC (17-7-2022=20)
2) SANHUA SBV03-019 BALL VALVE 3/8'' ODF (PCN 10150091802) =RM PER PC
3) SANHUA SBV04-019 BALL VALVE 1/2''ODF (PCN: SBV-13005) / 10150090502) RM PER PC
4) SANHUA SBV(M)-A5YHSY-1-SA BALL VALVE 5/8'' ODF (PCN: SBV-13007) / 10150053302 =RM PER PC
5) SANHUA SBV(M)-A6YHSY-1-SA BALL VALVE 3/4''ODF (PCN: SBV-13009) / 10150054302 =RM PER PC
6) SANHUA SBV(M)-A7YHSY-1-SA BALL VALVE 7/8''ODF (PCN: SBV-13010) / 10150053502 = RM PER PC
7) SANHUA SBV(M)-A9YHSY-1-SA BALL VALVE 1 1/8''ODF (SBV-13012) (PCN: 10150054702) = RM PER PC
8) SANHUA SBV(M)-A11YHSY-1-SA BALL VALVE 1 3/8''ODF (PCN: SBV-13013) = RM PER PC
9) SANHUA SBV(M)-A13YHSY-2-SA BALL VALVE 1 5/8''ODF (PCN: SBV-13038/10150055502) = RM PER PC
10) SANHUA SBV(M)-A17YHSY-1-SA BALL VALVE 2 1/8''ODF (PCN: SBV-13015) = RM PER PC
11) SANHUA SBV(M)-A21YHSY-2-SA BALL VALVE 2 5/8''ODF (PCN: SBV-13017) = RM PER PC
12) SANHUA SBV(M)-A25YHSY-2-SA BALL VALVE 3 1/8''ODF (PCN: SBV-13018) / 10150056502 = RM PER PC
13) SANHUA SBV(M)-A29YHSY-1-SA BALL VALVE 3-5/8'' (PCN: SBV-13041) = RM PER PC
14) SANHUA SBV(M)-A33YHSY-2-SA BALL VALVE 4-1/8'' (SBV-13046) (PCN: 10150056102) = RM PER PC
Model (WITH ACCES VALVE) New Code
Model (W/O ACCES VALVE) (Part No. To Follow New One)Model (WITH ACCES VALVE) New Code
15) SANHUA SBV6 SBV02-319 1/4'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N :13020/10150058402/10150094602) = RM PER PC (17-7-2022=20)
16) SANHUA SBV10 SBV03-319 3/8'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N :13039/10150053802/10150094802) = RM PER PC
17) SANHUA SBV04-319 BALL VALVE WITH ACCESS VALVE 1/2'' (PCN 10150095002) = RM PER PC
18) SANHUA SBV(M)-JA5YHSY-1-SA BALL VALVE 5/8'' WITH ACCESS VALVE (PCN: SBV-13025) / 10150053402 =RM PER PC
19) SANHUA SBV(M)-JA6YHSY-1-SA BALL VALVE 3/4'' WITH ACCESS VALVE (PCN: SBV-13027 /10150054202) = RM PER PC
20) SANHUA SBV(M)-JA7YHSY-1-SA BALL VALVE 7/8'' WITH ACCESS VALVE (PCN: SBV-13028) / 10150053602 = RM PER PC
21) SANHUA SBV(M)-JA9YHSY-1-SA BALL VALVE 1-1/8'' WITH ACCESS VALVE (PCN: SBV-13030) / 10150054802 = RM PER PC
22) SANHUA SBV(M)-JA11YHSY-1-SA BALL VALVE 1-3/8'' WITH ACCESS VALVE (PCN: SBV-13031) / 10150054902 = RM PER PC
23) SANHUA SBV(M)-JA13YHSY-2-SA BALL VALVE 1-5/8'' WITH ACCESS VALVE (PCN: SBV-13040) / 10150055402 = RM PER PC
24) SANHUA SBV(M)-JA17YHSY-1-SA BALL VALVE 2-1/8'' WITH ACCESS VALVE (PCN: SBV-13033) / 10150055802 = RM PER PC
25) SANHUA SBV(M)-JA21YHSY-2-SA BALL VALVE 2-5/8'' WITH ACCESS VALVE (PCN : 10150056402) = RM PER PC
SANHUA SBV(M)-A2YHSY-1-SA 1/4'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13002)
SANHUA SBV(M)-A3YHSY-2-SA 3/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13037)
SANHUA SBV(M)-A4YHSY-1-SA 1/2'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13005)
SANHUA SBV(M)-A4YHSY-1-SA 1/2'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13005)
SANHUA SBV(M)-A5YHSY-1-SA 5/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13007)
SANHUA SBV(M)-A6YHSY-1-SA 3/4'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13009)
SANHUA SBV(M)-A6YHSY-1-SA 3/4'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13009)
SANHUA SBV(M)-A7YHSY-1-SA 7/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13010)
SANHUA SBV(M)-A9YHSY-1-SA 1-1/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13012)
SANHUA SBV(M)-A11YHSY-1-SA 1-3/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13013)
SANHUA SBV(M)-A13YHSY-2-SA 1-5/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13038)
SANHUA SBV(M)-A17YHSY-1-SA 2-1/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13015)
SANHUA SBV(M)-A21YHSY-2-SA 2-5/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13017)
Model (WITH ACCES VALVE) (Part No. To Follow New One)
SANHUA SBV(M)-A9YHSY-1-SA 1-1/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13012)
SANHUA SBV(M)-A11YHSY-1-SA 1-3/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13013)
SANHUA SBV(M)-A13YHSY-2-SA 1-5/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13038)
SANHUA SBV(M)-A17YHSY-1-SA 2-1/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13015)
SANHUA SBV(M)-A21YHSY-2-SA 2-5/8'' ODF BALL VALVE (W/O ACCESS VALVE) (P/N : SBV-13017)
Model (WITH ACCES VALVE) (Part No. To Follow New One)
SANHUA SBV(M)-JA2YHSY-1-SA 1/4'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : SBV-13020)
SANHUA SBV(M)-JA3YHSY-2-SA 3/8'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : SBV-13039)
SANHUA SBV(M)-JA4YHSY-1-SA 1/2'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : SBV-13023)
SANHUA SBV(M)-JA5YHSY-1-SA 5/8'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : SBV-13025)
SANHUA SBV(M)-JA6YHSY-1-SA 3/4'' ODF BALL VALVE (WITH ACCESS VALVE) (PCN: SBV-13027 /10150054202)
SANHUA SBV(M)-JA7YHSY-1-SA 7/8'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : SBV-22 / 10150053602)
SANHUA SBV(M)-JA9YHSY-1-SA 1-1/8'' ODF BALL VALVE (W/ ACCESS VALVE) (P/N : SBV-13030) / 10150054802
SANHUA SBV(M)-JA11YHSY-1-SA 1-3/8'' ODF BALL VALVE (W/ ACCESS VALVE) (P/N : SBV-13031)
SANHUA SBV(M)-JA17YHSY-1-SA 2-1/8'' ODF BALL VALVE (W/ ACCESS VALVE) (PCN: SBV-13033) / 10150055802)
Model (WITH ACCES VALVE) * New Part No.
SANHUA SBV6 SBV02-319 1/4'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : 10150094602)
SANHUA SBV10 SBV03-319 3/8'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : 10150094802)
SANHUA SBV12 SBV04-319 1/2'' ODF BALL VALVE (WITH ACCESS VALVE) (P/N : 10150095002)
