69789-220

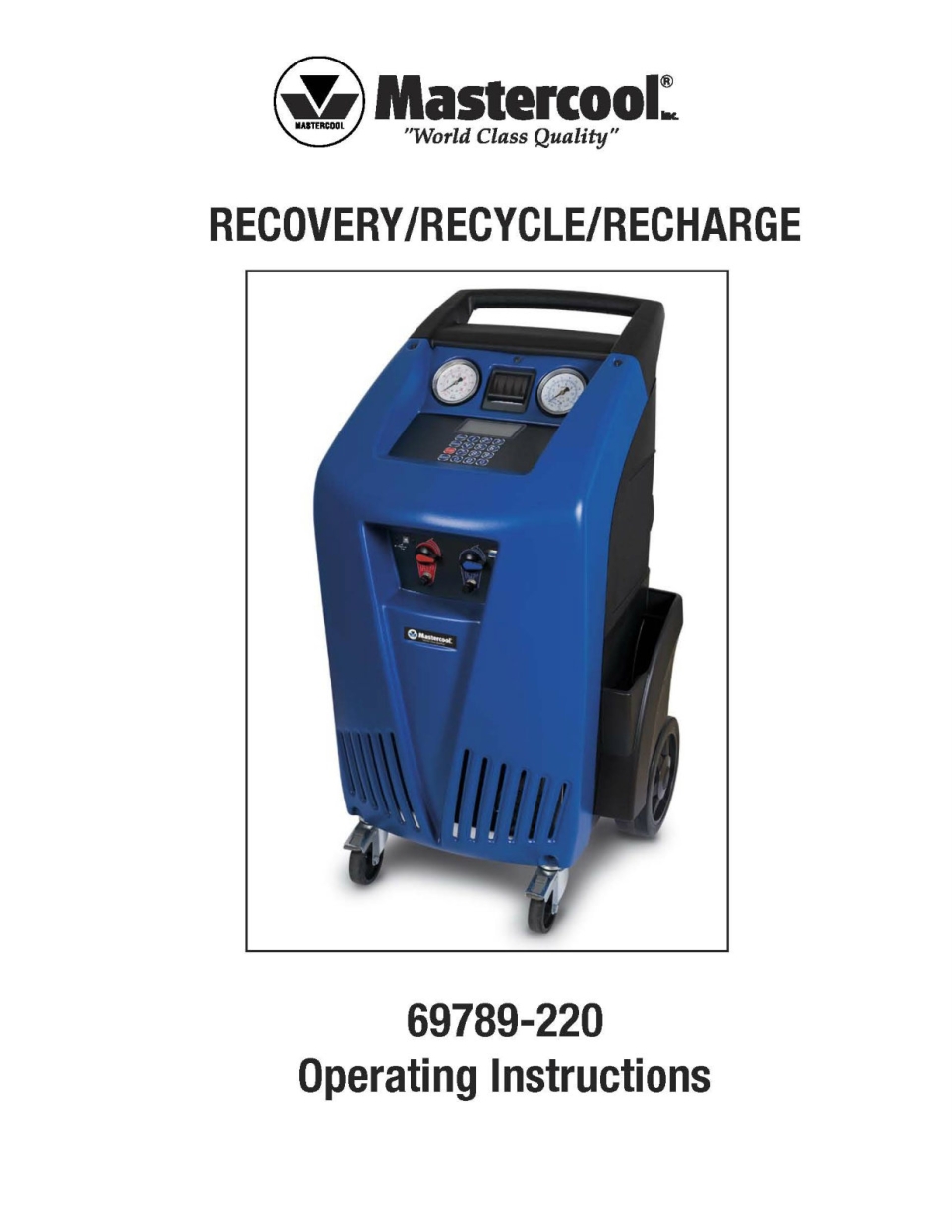

FULLY AUTOMATIC R134a RECOVERY/ RECYCLE/ RECHARGE

Product Description

• 3 Pressure Level Gauges to Indicate High and Low Pressure plus Bottle Pressure
• LCD Display
• Quality Performance Year after Year
• Automatic/Programmable or Manual : Can be programmed to complete a continuous recovery/recycle, vacuum and recharge. Can also be set to run each operation individually
• Includes Refrigerant Capacity Database (over 1000 vehicles) : Includes refrigerant capacities for US and Import makes and models from 1995 to 2012. Capable of database upgrades as well
• Auto Vacuum Leak Test : Can be programmed to perform a vacuum leak test and will inform the technician of possible leaks
• Auto Oil Discharge : Oil is automatically discharged during the recovery process. If oil is present, it will drain into a graduated container clearly displaying the amount of oil that was removed
• Auto Filter Alarm : The machine’s LCD and alarm will warn that a filter change is required
• Compact Footprint : The machine’s compact design makes it easy to maneuver and requires minimal shop space
• Full Tank Alarm : Notifies operator when tank is full
• Low Refrigerant Alarm : Notifies operator when refrigerant is low
• Automatic Oil Injection : With electronic scale (refillable)
• Thermal Printer : For a complete, detailed report

SPECIFICATIONS:

• Type of refrigerant: R134a
• Service Procedure: Fully automatic or manual
• Voltage: 220 V / 50/60 Hz
• Scale Resolution: 10g (.02 lb)
• Oil Scale Resolution: 5g (.01 lb)
• Working Temperature Range: 11/49˚C (59/120˚F)
• Filter System: 1 filters for humidity
• Vacuum Pump: 72 litre/min capacity, 0.1 mbar (.001 psi) vacuum level
• Compressor: Hermetically sealed, 12cc, high pressure
• Recovery Speed: 300g/min (.66 lb/min) in liquid phase
• Recovery Cylinder: 12 litres, refillable
• Hoses: 250 cm (96”)
• Couplers: Manual
• Thermal Printer: Standard Equipment
• Pressure Gauges: Class 1
• Bottle Temperature Sensor: Integrated
• Dimensions: (105 (h) x 60 (w) x 55 (d) cm)
• Weight: 80 kg (176 lbs)
