HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

AllParts, Components and AccessoriesHoneywell

Previous 9 / 16 Next

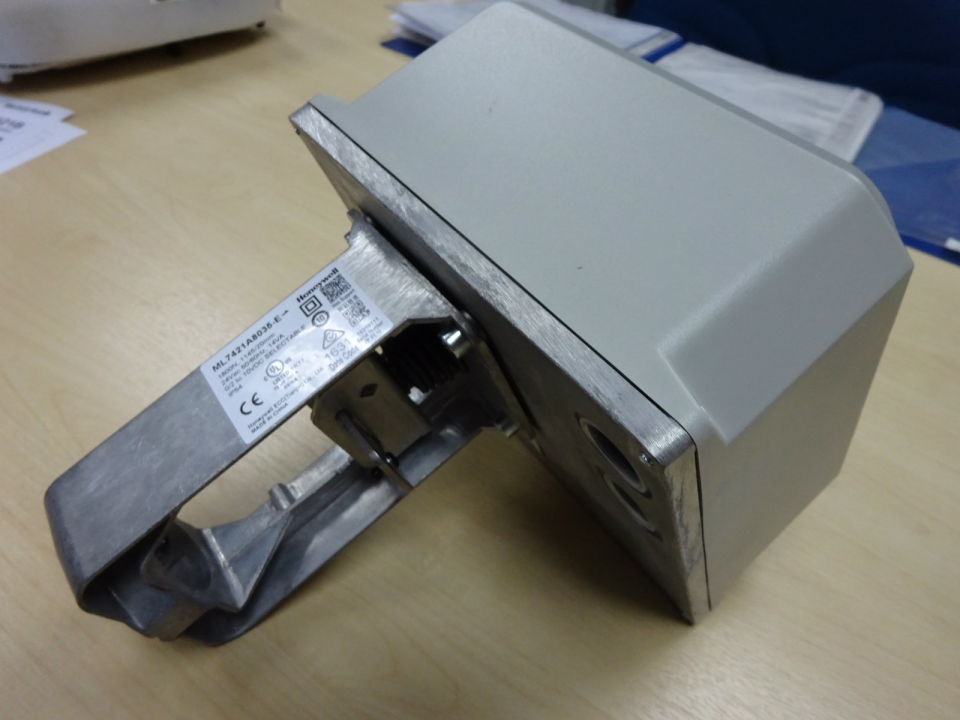

HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR(INSTALLATION)
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR(INSTALLATION)
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR(INSTALLATION)
ML7421A Turning For Actuator Cannot Close Completely Problem After Using Sometime
HONEYWELL V5329A2077 DN65 2-1/2" 3-WAY VALVE + ML7421A8035-E 24V ELECTRICAL VALVE ACTUATOR
HONEYWELL V5329A2077 DN65 2-1/2" 3-WAY VALVE + ML7421A8035-E 24V ELECTRICAL VALVE ACTUATOR
HONEYWELL V5329A2077 DN65 2-1/2" 3-WAY VALVE + ML7421A8035-E 24V ELECTRICAL VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V (WEIGHT) 2.515KG
Installation
Installation
Installation
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

HONEYWELL ML7421A8035-E 24V 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

Note

ML7421A8035 can be used up to a max 3'' valve only

What is a Modulating Control Valve?


A modulating control valve is an automated valve that is used to control the amount of flow in a system or process. They go beyond simple shutoff or isolation (on/off) and actually allow precise control of the flow rate. The actuators on these valves use feedback and control signals to accurately open and close the valve.


Note
1) ML7421A is for big valve.Torque is 1,800Nm. ML7420A8088A is for 1.5'' and below. Torque is 600Nm.
2) Pls note that there is no performance warranty on ML7420A with V5011P1038 (2'' 2-Way). It may not be strong enough to close the valve after a while.
3) All modulating actuators/thermostats are automatically 24Vac. This is industry standard.

Note
Replaced ML7421A1032 model
Replaced ML7421A3004 model
Replaced ML7421A1008 model

Complete Set

HONEYWELL V5013P1028 DN50 2'' 3-WAY BRONZE AHU VALVE C/W ML7421A8035-E MODULATING ACTUATOR
HONEYWELL V5329A2077 DN65 2-1/2'' 3-WAY VALVE + ML7421A8035-E 24V ELECTRICAL VALVE ACTUATOR
HONEYWELL V5329A 2-1/2'' 3-WAY CI AHU VALVE C/W ML7421A (1,800N) MODULATING ACTUATOR * Note: ML7984A (710N) is not recommended for 2.1/2'' 3 way valve. Torque not strong enough.
 V5329A/ML7421A- 3'' 3 Way valve c/w mod actuator
 V5328A/ML7421A - 3'' 2 way valve c/w mod actuator

New Combination With New Valve Types

The valve for 3'' 3-Way is V5GV3W080F and the valve for 2-Way is V5GV2W080F. You can still use back the same ML7421A Actuator


GENERAL

The ML7421A / ML7421B actuators are designed for modulating control, accepting 0(2)...10v or 4...20mA input
signal, and providing feedback signal 2...10 Vdc only. They operate Honeywell’s standard valves in heating, ventilation,
and air conditioning (HVAC) applications.

FEATURE

 Easy and quick installation
 No separate linkage and adjustments required
 Low power consumption and maintenance-free
 Self-adaption function
 Force-limiting end stops
 Manual operation knob
 0(2)~10 Vdc input and 2~10 Vdc position feedback
 Direct/ Reverse action adjustable
 Selectable stroke position when signal failure
 Corrosion-resistant design

SPECIFICATION

Temperature

Ambient operating -10~+50℃ at 5~95% r.h.
Ambient storage -40...+70 °C at 5...95% r.h.
Medium temperature 150 °C max. (220 °C with
High-Temperature kit)

Signals

Signal input y=0(2)~10 Vdc or 4~20 mA
Input impedance for voltage Ri=100 KΩ
for mA Ri=500Ω
Position feedback signal x=2~10Vdc
Output impedance 1 KΩ max.
Output load 1 mA max.

Safety

Protection class III as per EN60730-1
Protection standard IP54 as per EN60529
Flame retardant housing V0 as per UL94
(with metal cable gland)

Material

Cover ABS-FR
Yoke and Base Aluminum die-cast
