Honeywell ML7984 Valve Actuator

AllActuatorHoneywell

Previous 37 / 40 Next

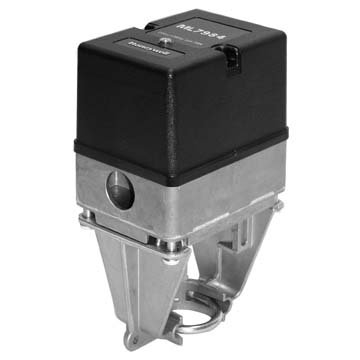

Honeywell ML7984 Valve Actuator
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR
Honeywell ML7984A4009 Valve Actuator Installation

Honeywell ML7984A Actuator Replacing
Honeywell ML7984 Valve Actuator

Model

HONEYWELL ML7984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

Replaced

ML7983A3019

PRODUCT DATA

• Separate models available for V5011/13 A and C or V5011/13 F and G valve body types
• Self-contained, motorized valve linkage.
• Linkage self-adjusts to valve stroke of up to 19 mm (3/4”)
• Multipoise mounting
• Strong valve seat closing force 710 Newton (160 lbs.)
• Compact size for easy installation in confined areas
• Electronic current sensing provides internal protection and positive full closing force
• Field-addable auxiliary switches available

SPECIFICATIONS

Ambient Rating

Operating Temperature: 0°C to 55°C (32°F to 130°F)
Shipping Temperature: -40°C to +65°C (-40°F to 150°F)
Relative Humidity: 15% to 95% at 40°C (104°F)
Acoustic Noise
55 dBA max. Sound Pressure Level at 1 m (39”) distance.
Electrical Ratings
Power supply/consumption: 24V (Nominal), 50/60Hz or 24
to 28 Vdc. 6VA(Running), 12VA(Valve seating)
Input Impedance
Voltage Model -- 20 KΩ
Current Model --237 Ω
Shipping Weight
Approx. 1 kg (2.2 lbs)

APPLICATION

The ML7984 is a self-contained, self-adjusting, linear motorized
linkage that mounts directly onto V5011 two-way or
V5013 three-way valves and provides up to 19 mm (3/4”)
of linear travel (stem lift). For use with Series 70 2-10Vdc,
4-20mA electronic and Series 90 135 Ω, Electronic (Super
Mod) modulating signal controllers.

FEATURES

The ML7984 valve actuator provides the following features:
• Allows the use of one common transformer power supply for multiple actuators and controllers
• Field-configurable DIP switches for Series 70 / 90 controller
• Field-configurable DIP switches for Direct / Reverse action
• Field-selectable terminals for 2-10Vdc / 4-20 mA signal input
• One device for either Vac or Vdc power supply application
• Compatible with 3 -wire system (one common wire for both signal & power inputs)
