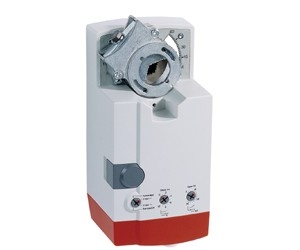

CN20, CN34 SERIES NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR MODULATING AND FLOATING / 2-POSITION CONTROL

Model (Acuator)

HONEYWELL CN4620A1001 20NM, 230VAC, DAMPER ACTUATOR, NON-SPRING RETURN

CN7220A2007 20Nm,24Vac/Vdc, Modulating and floating/2-position control, Non-Spring return, Voltage Feedback Signal and without aux. Switch
CN7234A2008 34Nm,24Vac/Vdc, Modulating and floating/2-position control, Non-Spring return, Voltage Feedback Signal and without aux. Switch
HONEYWELL CN7234A2008 34NM, 24VAC/VDC, MODULATING CONTROL, NON-SPRING RETURN (FAIL SAFE FUNCTION) Voltage Feedback Signal AND without aux. Switch

Model (Ball Valve)

HONEYWELL VBA216-100F 2-WAY DN100 (4'') PN16 KVS160 FLANGED BALL VALVES (TEMP:-5~120°C)

Complete Set

HONEYWELL CN7234A2008 34NM, 24VAC/VDC, MODULATING CONTROL+VBA216-100F 2-WAY DN100 (4'') PN16 KVS160 FLANGED BALL VALVES (TEMP:-5~120°C)


Controller To Use

Can use TB7980A, TF243WN or TFM223N/U, depending if you want any external duct sensor or 3-speed fan switch.

GENERAL

These direct-coupled damper actuators provide modulating control for:
• air dampers,
• VAV units,
• air handling units,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 4.6 m2
 / 50 sq.ft. (20 Nm / 177 lb-in) or 7.8 m2
 / 85 sq. ft.
(34 Nm / 300 lb-in) (seal-less dampers; air frictiondependent).

FEATURES

• Self-centering shaft adapter
• Access cover to facilitate connectivity
• Service/off for safe & easy servicing
• Rotation direction selectable by switch
• Declutch for manual adjustment
• Mechanical end limits
• Field-installable auxiliary switches
• Mountable in any orientation (no IP54 if upside down)
• Mechanical position indicator
• CE and UL certified

SPECIFICATIONS

Supply voltage 24 Vac/dc ±15%, 50/60 Hz;

Nominal voltage 24 Vac/dc, 50/60 Hz;
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption
CN7220A2007 6 VA / 3 W
CN7234A2008 6 VA / 3 W
Ambient limits
Ambient operating limits -20...+60 °C (-5...+140 °F)
Ambient storage limits -40...+80 °C (-40...+175 °F)
Relative humidity 5...95%, non-condensing
Safety
Protection standard IP54 as per EN 60529
Protection class II as per EN 60730-1
Overvoltage category II
Lifetime
Full strokes 60000
Repositions 1.5 million
Mounting
Round damper shaft 10...27 mm (3/8...1-1/16')
Square damper shaft 10...18 mm (3/8...11/16');
 45° steps
Shaft length min. 22 mm (7/8')
Control signal 0(2)...10 Vdc
 0(4)...20 mA
Input impedance >100 kΩ [0...10 V]
 500 Ω [0...20 mA]
Feedback signal
Limits ± 1 mA at 0...10 V
End switches (when included)
Rating 5 A (resistive) / 3 A (inductive)
Triggering points 5° / 85°
Torque rating
CN7220A2007 20 Nm (177 lb-in)
CN7234A2008 34 Nm (300 lb-in)
Runtime 95 sec (60 Hz) / 110 sec (50 Hz
or DC supply)
Rotation stroke 95° ± 3°
Dimensions see 'Dimensions' on page 8
Weight (without cables) 1.35 kg (3 lbs.)
Noise rating 40 dB(A) max. at 1 m
Certification CE & UL

Torque Per Module (Nm) Calculation

NON-SPRING RETURN (ON/OFF)
e.g : a) 200 x 200 (mm) [Damper Size (Net)] = 0.2 x 0.2 = 0.04 M2
        x 10 (Factor) = 0.4 Nm

MFD-S (Motorized Fire Damper) Fail Safe Fast Running (SPRING RETURN)
e.g : a) 1,200 x 600 (mm) = 1.2 x 0.6 = 0.72 M2
         x 10 (Factor) = 7.2 Nm

         b) 1,500 x 1,200 (mm) = 1.5 x 1.2 = 1.8 M2
         x 10 (Factor) = 18 Nm

         c) 2,500 x 1,000 (mm) = 2.5 x 1.0 = 2.5 M2
         x 10 (Factor) = 25 Nm
