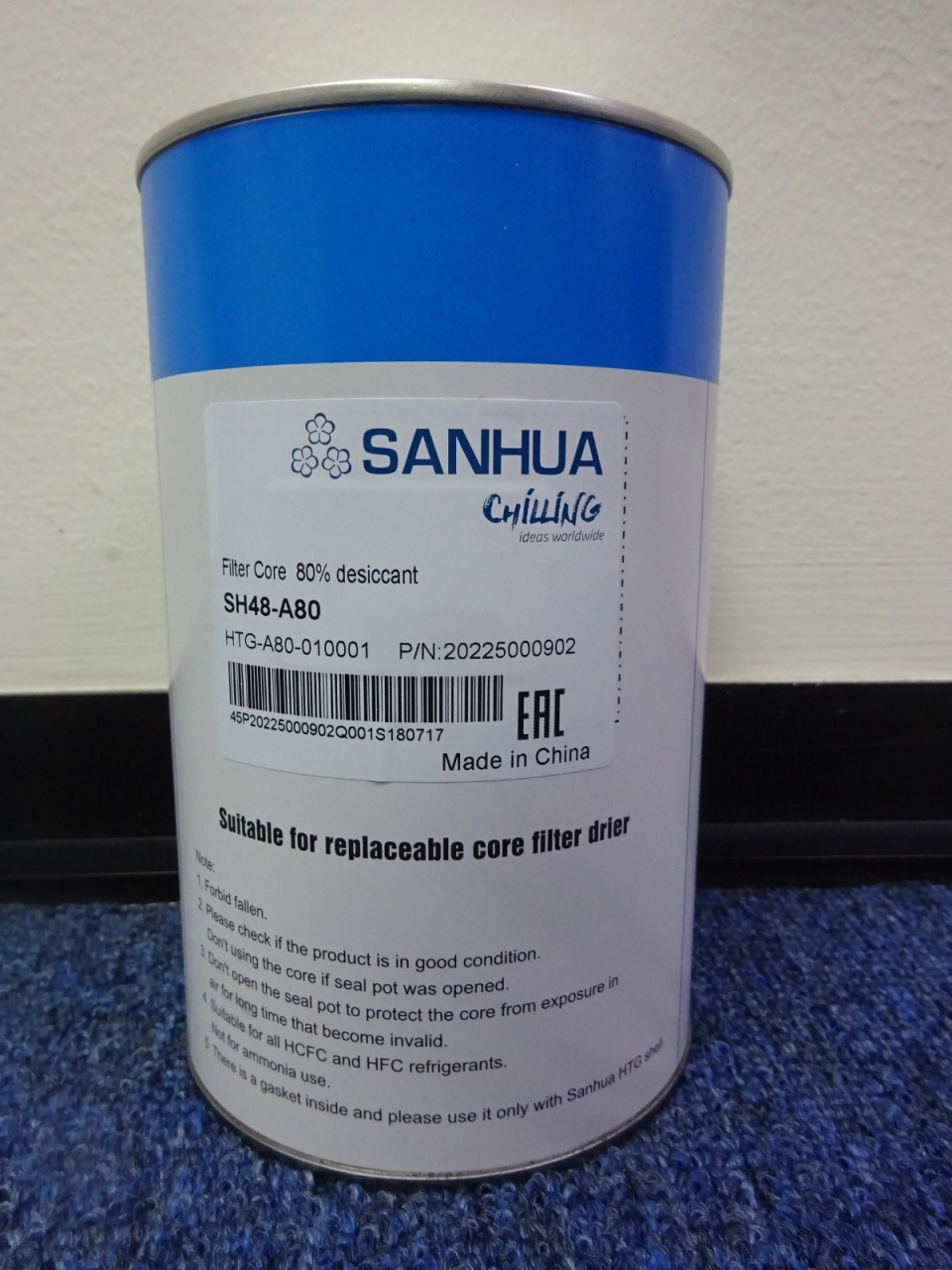

SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)

AllParts, Components and AccessoriesSANHUA

Previous 7 / 10 Next

SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)
SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)

SANHUA SH48-A80 FILTER CORE (80% DESICCANT) HTG-A80-010001 (12PCS/BOX) (P/N: 20225000902)

Packing

12-pc/box

The filter driers with replaceable core (HTG series) are used in liquid line and suction line of refrigerating, freezing and air conditioning system. The filter housing allows to choose different kinds of cores. It’s sealed by bottom cover for an easy removal and replacement of core from the bottom. The core holder requires minimum free space to remove the core for replacement.

FEATURES

• HIGH EFFICIENT IN MOISTURE ABSORPTION, FILTERING IMPURITY, ACID, PAINT REMAINS AND MUD REMOVAL
• HYBRID DESICCANT
• DURABLE AND SOLID FILTER CORES
• FILTERING FINENESS: 20µm
• CORROSION RESISTANT PAINTING CAN SURVIVE SALT SPRAY TEST OF 500 HOURS
• CONNECTION TYPE: FLARE OR SOLDER

FEATURES OF FILTER ELEMENT

• SH48-A80 FILTER ELEMENT:

80% 3A DESICCANT AND 20% ACTIVATED ALUMINA, It provides a good desiccation ability and an acid absorption capability in a wide temperature range.
The core resistance is guaranteed with high level of vibration thanks to an anti-shock design.
Suggested installation position on liquid line
• SH48-A00 FILTER ELEMENT:

100% 3A DESICCANT
It provides the maximum level of desiccation ability in a wide temperature range. The core resistance is guaranteed with high level of vibration thanks to an anti-shock design. Suggested installation position on liquid line
• SH48-A30 FILTER ELEMENT:

30% 3A DESICCANT , 70% ACTIVATED ALUMINA
This solid filter element provides an excellent acid absorption together with a standard desiccation ability in a wide temperature range. The suggested installation position is on the suction line; it is suitable after compressor burnout because it removes acid, impurities and other harmful substance
avoiding the damage of the new compressor. SH48-A30 filter core is compatible with HCFC / HFC refrigerants and its design optimizes the flow
passage generating low internal pressure drop. The core resistance is guaranteed with high level of vibration thanks to an anti-shock design.
