HONEYWELL M7410E SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)

AllActuatorHoneywell

Previous 27 / 40 Next

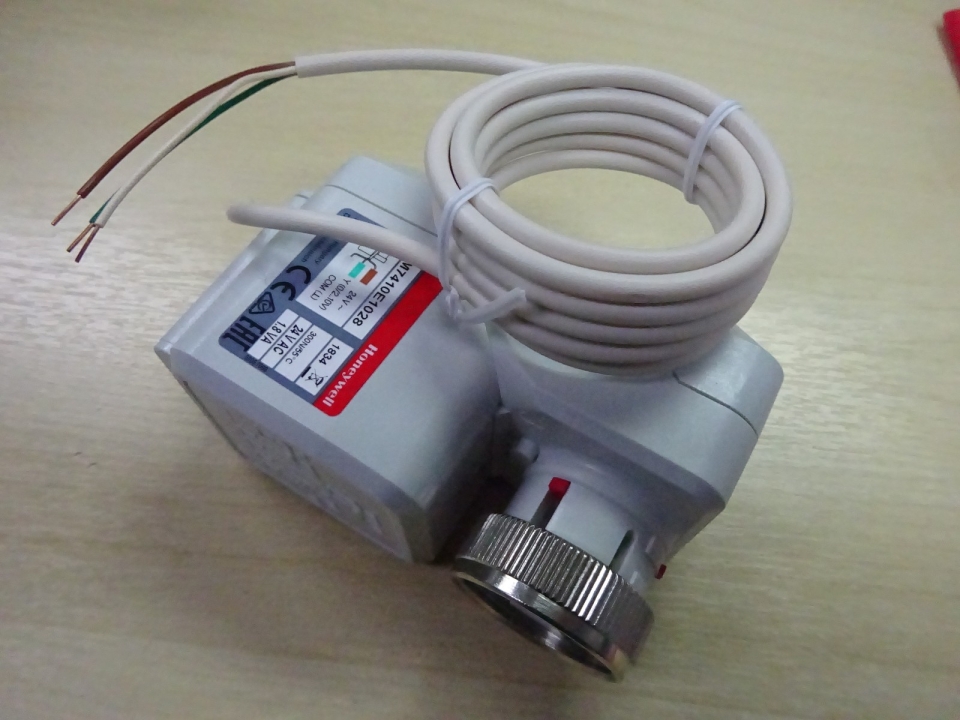

HONEYWELL M7410E SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)
HONEYWELL M7410E1028 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)
HONEYWELL M7410E1028 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)
HONEYWELL M7410E1028 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)

HONEYWELL M7410E SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)

Model

​HONEYWELL M7410E1002 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC/50/60 HZ)
HONEYWELL M7410E1028 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC/50/60 HZ)

APPLICATION

The Honeywell M7410E actuator is specifically designed to provide modulating control together with the V5822/23,
V5832/33, and V5825B series of small linear valves.
The M7410E is used in fan-coil-units, induction units, small reheaters and recoolers, and for zone control applications. It is employed in electronic temperature control systems with hot and/or cold water as the controlled medium. This actuator is fully compatible with all controllers providing 0...10 V or 2...10 V output signals.
The 7410E actuator is designed for applications where space is limited and minimum power consumption is required. A microprocessor-based, high-performance positioner guarantees accurate control. Reliable longtime operation is ensured due to the fact that no mechanical feedback potentiometer and no mechanical endswitches are needed. Due to an automatic synchronization function, the close-off point is self-adjusting. Based on a running time of 150 s, valve positioning and flow adjustment is very exact. Manual positioning is provided for all actuators. The actuator is both attractive and robust in design. A special version with auxiliary switch is available.

FEATURES

 Microprocessor-based positioner ensures precise stem positioning
 Small size allows installation where space is limited
 Low power consumption
 Suitable for 0...10 V and 2...10 V controller output signal (adjustable on site)
 Easy-to-operate direct/reverse acting switch
 Simple input signal override (e.g. for frost protection function)
 Reliable longtime operation because mechanical feedback potentiometers and mechanical end switches are not required
 Magnetic coupling for stem force limitation and selfadjustment of the close-of-point
 Supplied with pre-wired connection cable
 Simple, standardized valve/actuator coupling. No tools required for mounting
Visual valve position indicator furnished with actuator
 Manual operation provided by the valve adjustment cap, extra knob, or with a hexagon key
