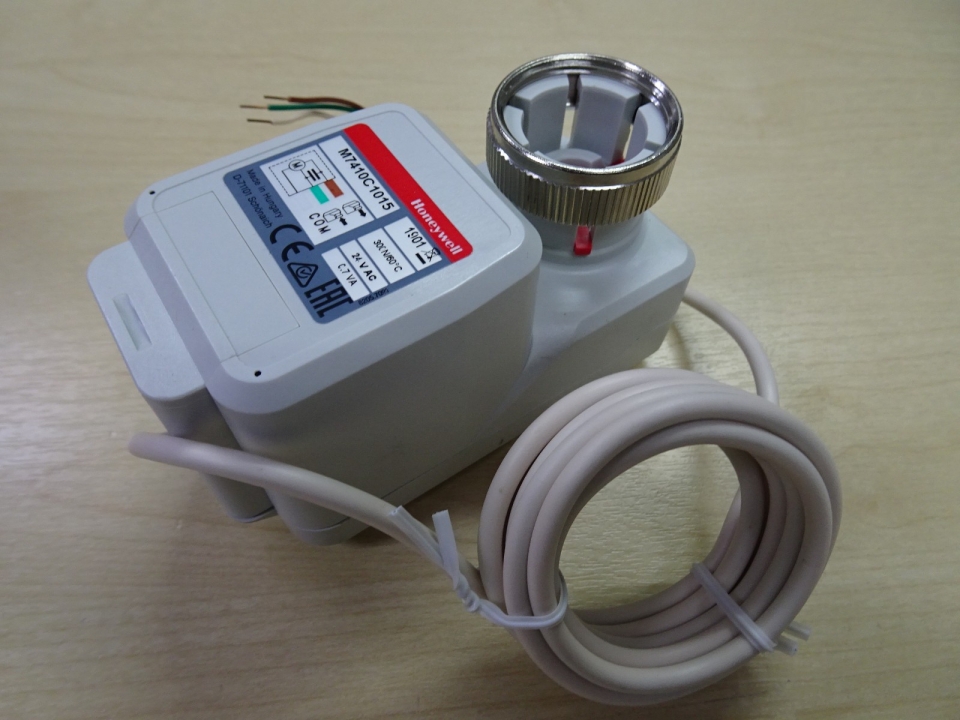

HONEYWELL M7410C1015 SMALL MODULATING LINEAR VALVE ACTUATOR (24 VAC)

GENERAL


The Honeywell M6410C/L and M7410C actuators are

specifically designed to provide floating control together with

the V5822/23 and V5832/33 series of small linear valves.

The M6410C/L and M7410C actuators are used in fan-coilunits, induction units, small reheaters and recoolers and for

zone control applications. They are employed in electronic

temperature control systems using hot and/or cold water as

the controlled medium.

The M6410C/L and M7410C actuators are suitable for

Honeywell Excel series controllers as well as for Honeywell

individual room temperature controllers. These controllers

track the precise valve position by counting the number of

individual control pulses which move the valve from one

position to another. For this reason, the actuators do not need

endswitches or a feedback potentiometer. The absence of

these mechanical components ensures longtime reliability.

The M6410C/L and M7410C actuators are also compatible

with any controller providing intelligent position control and

having a built-in shut-off function.

These actuators are well suited for applications where space

is limited and minimum power consumption is required. The

actuators are both attractive and robust in design.

FEATURES


• Small size allows installation where space is limited

• Low power consumption

• Reliable longtime operation because mechanical

feedback potentiometers and mechanical end

switches are not required

• Magnetic coupling for stem force limitation and selfadjustment of the close-off-point

• Reversible synchronous AC motor

• Suitable for three-position modulating control without

proportional feedback

• Supplied with pre-wired connection cable

• Simple, standardized valve/actuator coupling; no

tools required for mounting

• Visual valve position indicator furnished with

actuators

• Manual operation provided by the valve adjustment

cap, extra knob, or with a hexagon key

• Auxiliary switch
