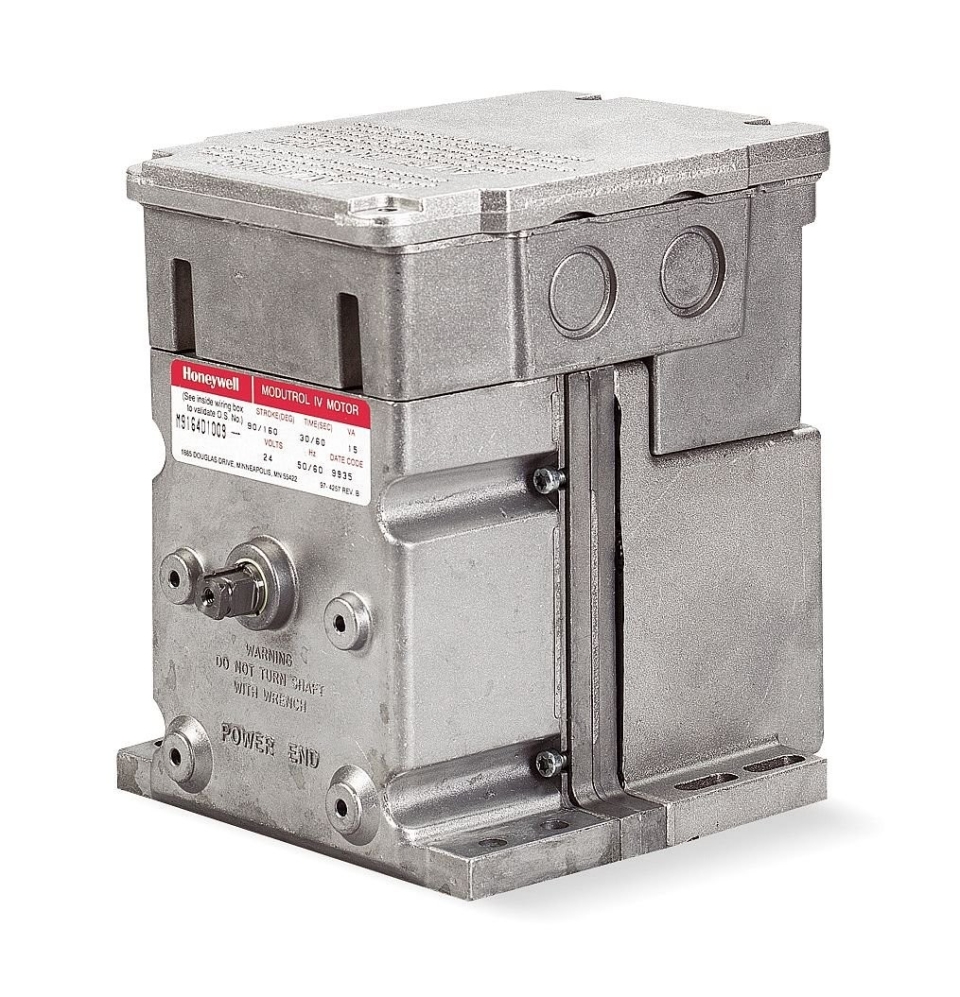

M6284D1000 24V 50/60HZ Modutrol IV™ Motors

AllActuatorHoneywell

Previous 21 / 40 Next

M6284D1000 24V 50/60HZ Modutrol IV™ Motors
M6284D1000 24V 50/60HZ Modutrol IV™ Motors

Download Files

Modutrol_IV™_Motors.pdf (94.72 KB)
M6284D1000 24V 50/60HZ Modutrol IV™ Motors

Dated : 23-9-2021


APPLICATION

These Modutrol® Motors are 3-wire floating control motors
with an internal, electrically isolated feedback potentiometer.
These motors are used with controllers that provide floating
or spdt output to operate dampers or valves.

FEATURES

• Replace M944B,E,G,S Motors.
• Oil immersed motor and gear train for reliable performance and long life.
• Wiring box provides NEMA 3 weather protection.
• Quick-connect terminals standard—screw terminal adapter available.
• Adapter bracket for matching shaft height of older motors is standard with replacement motors.
• Die-cast aluminum housing.
• Integral auxiliary switches are available factory mounted or can be field added to TRADELINE® models.
• Electrically isolated feedback potentiometer provides indication of shaft position and can be used to slave Series 90 Motors or rebalance an external control circuit.

Product Specifications

Application
Electric
Dimensions (in.)
6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Dimensions (mm)
164 mm high x 140 mm wide x 185 mm deep
Includes
Slave with Series 90 Motors
Weight (lb)
6.5 lb
Comments
non-linear feedback, for slaving applications only
Item Type
Product
Mounting
Foot-mounted
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
Listed: File No. E4436, Guide No. XAPX for USA and Canada
Tradeline Value
Tradeline
Electrical Connections
Quick-connect terminals
Supply Voltage
24V
Power Consumption
Driving-- 15 VA
Approvals, CE
EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
Ambient Temperature Range (F)
-40 F to +150 F
Ambient Temperature Range (C)
-40 C to +60 C
Internal Auxiliary Switch
0
Auxiliary Switch Ratings
AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
Stroke
Adjustable; 90 to 160 degrees, Symmetrical
Shaft Dimensions (in.)
0.375 in. Square
Control Signal
Floating
Fail Safe Mode
Non-Spring Return
Torque Rating (lb-in.)
150 lb-in.
Torque Rating (Nm)
17 Nm
External Auxiliary Switches Available
Yes
Shaft Rotation (upon control signal increase)
Dependent on wiring (normally closed)
Factory Stroke Setting
160 degrees
Timing, Nominal
30-60 sec
Feedback
Yes
Shaft Dimensions (mm)
10 mm Square
Motor shafts
Dual-ended shaft
Deadweight Load on Shaft
Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
Internal Transformer
None
