Honeywell ML6984 Non-Spring Return Valve Actuator w/ 160 lbf force

AllActuatorHoneywell

Previous 17 / 40 Next

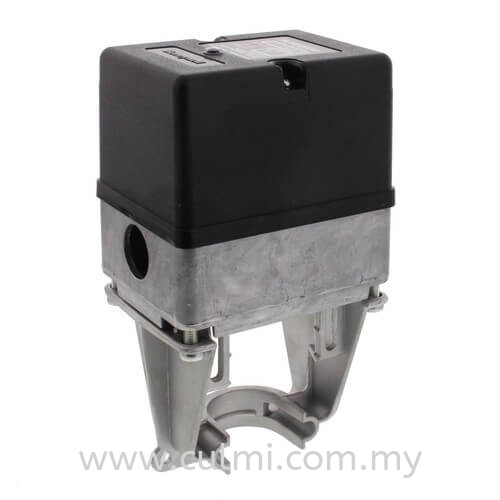

Honeywell ML6984 Non-Spring Return Valve Actuator w/ 160 lbf force
ML684 (OLD MODEL)
ML684 (OLD MODEL)
HONEYWELL ML6984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

Honeywell ML6984 direct drive zone valve actuator closing

Download Files

ML6984A4000-Submittal.pdf (362.24 KB)
Honeywell ML6984 Non-Spring Return Valve Actuator w/ 160 lbf force

Model

HONEYWELL ML6984A4009 24VAC OR 28VDC 50/60HZ DIRECT COUPLED ELECTRIC VALVE ACTUATOR

APPLICATION

The ML6984 and ML7984 are self-con tained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in. (13 mm) and 1 in. (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off), or SP3T Series 60 (fl oat ing) electro-me chan i cal and elec tron ic controllers.

FEATURES

• Self-contained, motorized globe valve linkage.
• Microprocessor-based digital position sensing and motor control for accurate positioning.
• Compact size for easy installation in confi ned spaces.
• NEMA 3R rain-proof cover for outdoor in stal la tion.
• Self-calibrating for valve stroke from 1/2 in. (13 mm) to 1 in. (25 mm).
• DIP switch input confi guration selection.
• LED (light-emitting diode) status indication.
• Confi gurable to 3-wire mode for fl oating models.
• 710 N 160 lbf (712 N) valve clos ing force.
• Usable with common transformer pow er supply for mul ti ple ac tu a tors and con trol lers.
• 24 Vac or 28 Vdc power supply.
• Field-addable position feedback/auxiliary switch mod ule avail a ble for 5-wire models.

ML7984 is for use with Series 70 0-10 Vdc, 2-10 Vdc, 4-20 mA; elec tron ic Series 90 “SuperMod”; and 135 ohm modulating controllers.

Replacement Model For

ML684
