• HONEYWELL

We did not and have no intention to keep stock of this new FCU Motorised Ball valve. The Cv is very low and installations base are almost unheard of, so demand is very low. It is also not any cheaper than the current V4043 series.

HONEYWELL VS8 SERIES 2-WAY/3-WAY FAN COIL VALVE (SPRING RETURN TYPE)

VS = SPRING RETURN TYPE

Model

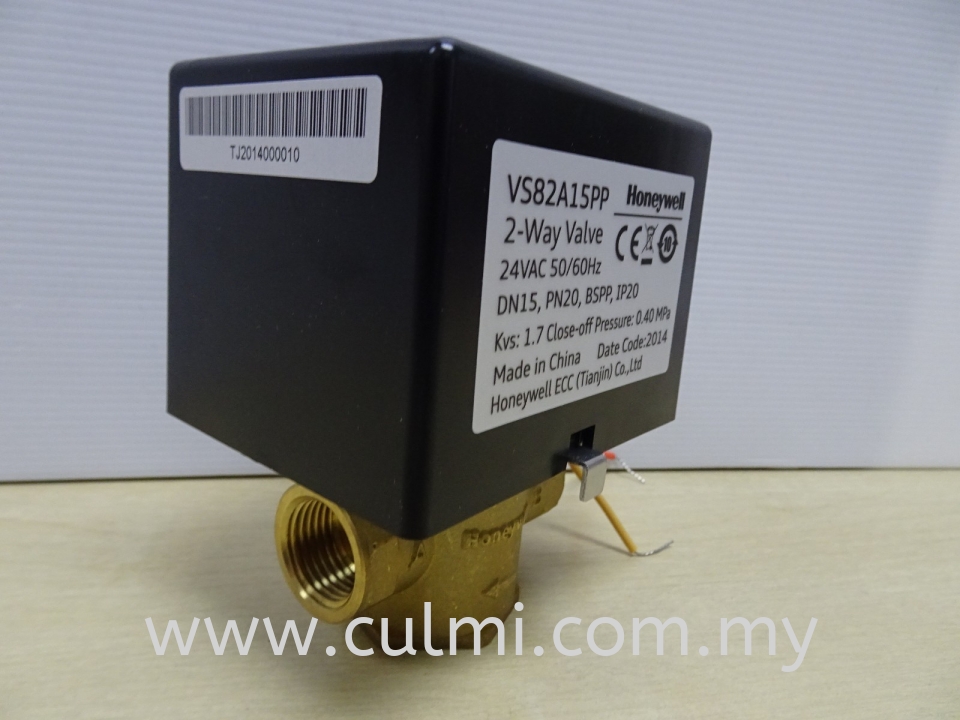

HONEYWELL VS82A15PP (SP. RET.) 2-WAY (1/2'' [DN15] PN20 BSPP IP20) (2-WIRE 24VAC 50/60HZ) FAN COIL VALVE

HONEYWELL VS82C20PP (SP. RET.) 2-WAY (3/4'' [DN20] PN20 BSPP IP20) (2-WIRE 220VAC 50/60HZ) FAN COIL VALVE

Packing

20-pc per box

Application


VS8 series FCU control valves can be used in residential and office buildings to control the continuity of cold and hot fluids. The FCU control valve is made up of two parts: electric actuator and valve body. VS8 series FCU control valve offers a wide range of voltages and screw thread connection standards for different regions. There are two-way and three-way valves to cover most of the building control applications.

Technical Specification


Actuator


Operating Voltages: 220Vac±10%, 110Vac±10%

24Vac±10% 50/60Hz

Control mode: Spring Return, Port “A” - Open

Working temperature: 0~50°C

Working relative humidity: 10%~90%RH, non-condensating

Power consumption: ≤7VA

Nominal Timing: Open: ≤20s

Shut: ≤15s

Protection rating: IP20

Valve


Applicable medium: cold or hot water or 50% glycol solution

Fluid temperature: 0~94°C

Operating temperature: 0~50°C

Operating relative humidity: 10%~90%RH, non condensating

Nominal pressure: PN20

Leakage rate: 0.05%kvs

Materials:

Valve body: HPb59-2

Valve rod: HPb59-2

Valve flap: EPDM
