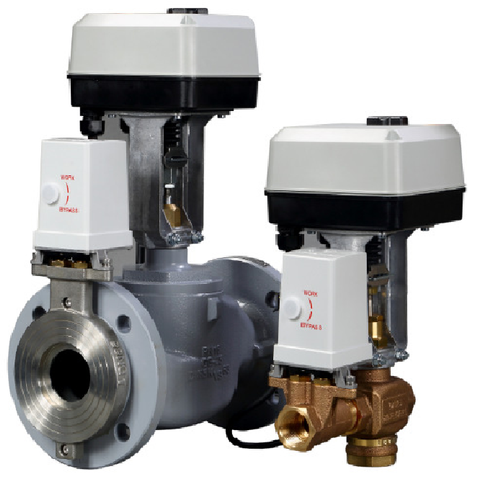

HONEYWELL KOMBI-9 SERIES PRESSURE INDEPENDENT INTEGRATED BALANCING CONTROL VALVE

Actuator

HONEYWELL ML7420A8088-SBU 24V 50/60HZ (20MM STROKE) PRESSURE INDEPENDENT CONTROL VALVE ACTUATOR

Application


Honeywell Kombi-9 is designed for precise temperature control of terminal air-conditioning equipment in the HVAC system. It can maintain the flow regardless of variations in system differential pressure. With the valve position feedback the Building Automation System can always operate in the most energy-saving mode.

Features


• Integrated functions as linear temperature control, pressure independent and electric regulating into one valve

• Output the valve position signal to BAS for system variable differential pressure control of variable flow water system, ensure HVAC water system can always operate in the most energy-saving mode

• High control accuracy, strong anti-interference capacity

• Wide fluctuating range of pressure difference for the system

• Simple calculation in designing the pipeline system

• Easy installation

• Extremely convenient for commissioning at site

Components of ML-SBU Series Super Electric Actuator


• Built-in common terminal equipment thermal output features database for high-precise linear temperature control of the terminal equipment

• Built-in pressure-independent characteristics database ensures the pressure-independent temperature and flow control

• All temperature and flow can be automatically regulated without any human interference

• Size of control valve can be set directly

• Stroke self-adaption function

• Max. flow can be preset easily according to the requirements of the terminal equipment

• Display of max. set flow

• Extremely low energy consumption

Control valve


• V5011P Series control valve for DN25-DN50

• V5328A Series control valve for DN65-DN80

• V5088A Series control valve for DN100-DN150

• Bronze valve body (DN25~DN50) resists corrosion and long service life

• Stainless steel plug and the metallic sealing ensures basically no leakage of the valve
