ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)

AllTemperature Display / ControllerElitech

Previous 3 / 17 Next

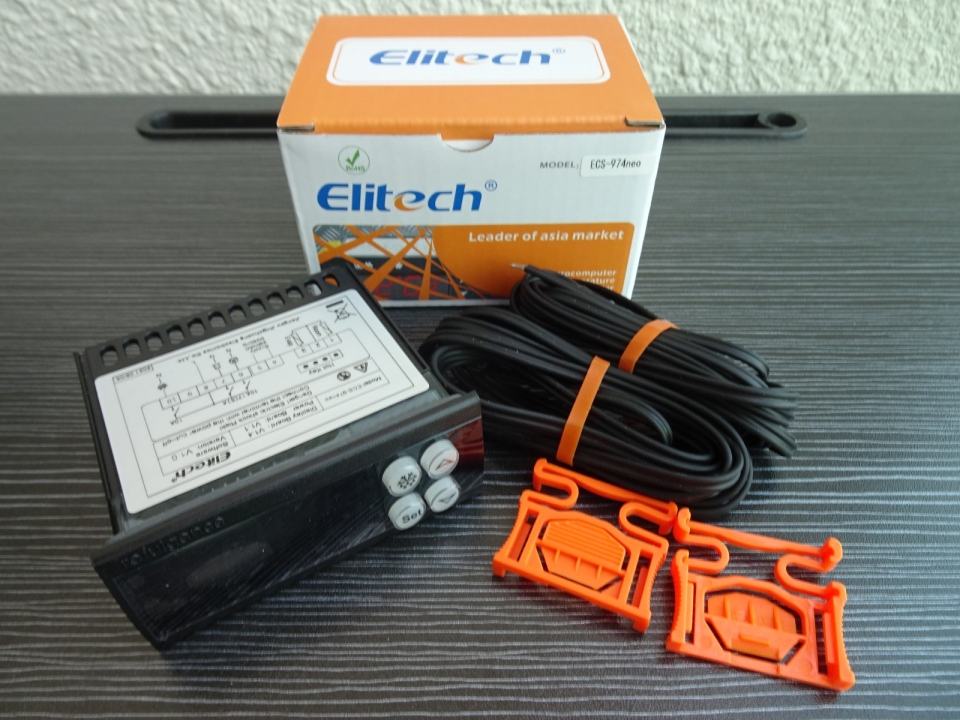

ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
SHIPMENT (29-12-2023)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMP. CONTROLLER ECS-974neo(220V)(C/W 2-PC NTC PROBE)(REPLACED:ETC-974)(29/12/23)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)
ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE)

ELITECH DIGITAL TEMPERATURE CONTROLLER ECS-974neo (220V) (C/W 2-PC NTC PROBE) = RM121.00 PER PC (8-1-2024=AAA45.13223)

Discover the ECS-974neo, a compact, high-precision temperature controller designed for efficient cooling, defrosting, and fan management. Ideal for various refrigeration setups like medical cabinets, kitchen units, and supermarket displays. With dual-sensor inputs and triple control outputs, it ensures reliable performance in any application. Enhance your temperature control with this versatile and easy-to-operate device.


Note

Option For ETC-974 Model

1. ECS-974neo is a universal standard temperature controller.
2. Display and operation panel



Mounting size: 71 x 29 mm
Product size: 78.5 x 34.5 x 74 mm

3. Technical parameters

Temperature measuring range: -50℃~99℃(Only when sensor calibration value is set to 0)
Resolution: 0.1℃/1℃ settable
Accuracy: ±1℃(-40℃~50℃), ±2℃(others)
Temperature control range: -50℃~99℃
Power supply: 220 VAC±10 %, 50/60Hz
Overall power consumption: <3W
Input port: Cabinet sensor, evaporator sensor
Output capacity: Cooling/Defrost/Fan: 10A/240VAC
Protection grade of front panel: IP65
Operating ambient temperature:0℃~55℃
Storage temperature:-25℃~75℃
Storage humidity: 20%~85% (non-condensing)
