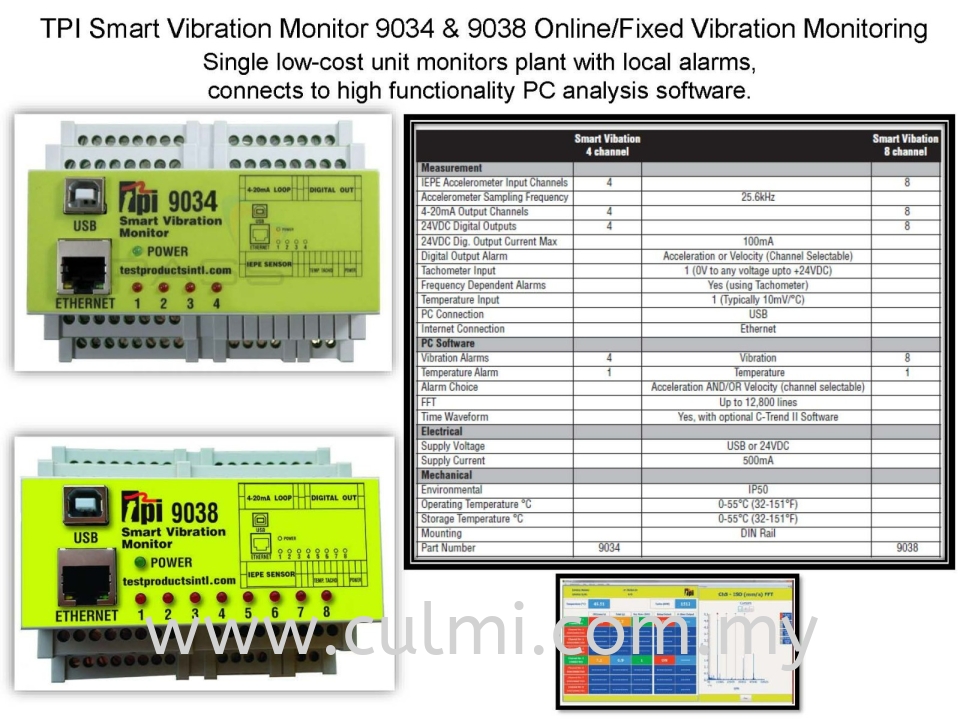

The Smart Vibration Monitor 9034 and Smart Vibration Monitor 9038 are the new generation of low price-high performance installed vibration analyzers from TPI. With up to 8 accelerometer inputs, 8 digital outputs, 8 analog outputs, temperature and tacho inputs as well as USB and Ethernet connectivity the Smart Vibration Monitor 9034 and Smart Vibration Monitor 9038 modules offer unrivaled price/per channel performance. The analyzers can be used in several different ways:

• Standalone Operation: Connect up to 8 accelerometers and up to 8 relays and instantaneously monitor and alarm on-key vibration points. Using the included Smart Vibration Monitor PC software the alarms can each independently be set to trigger on/either a velocity level or a g level. If a tacho is connected, a speed range can be set so as not to activate during machine start-up or shut-down.
• Legacy Systems Operation: for each connected accelerometer, the Smart Vibration Monitor units can also output levels of vibration (g or velocity) as 4 to 20mA signals for connection to existing monitoring systems such as PLCs, etc.
• PC Operation: If a laptop/PC is connected via a USB cable, up to 64 modules can be monitored and the vibration levels displayed on screen. With the PC connected more detailed vibration analysis can be carried out with up to 51,200 line FFT analysis.
