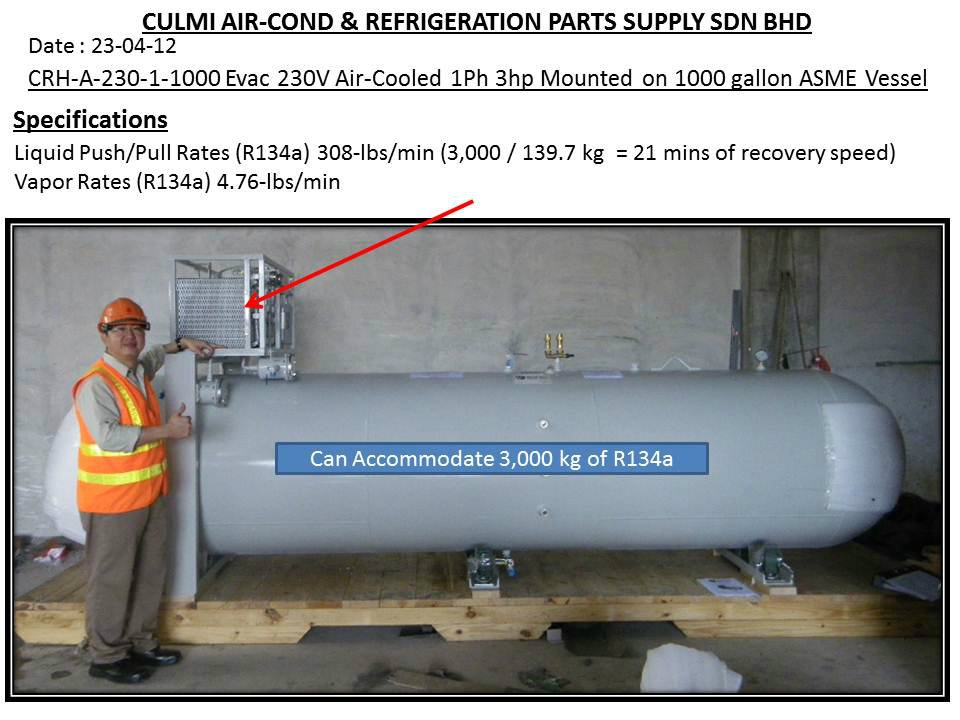

KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
KLIA2 District Cooling Plant Project With Reftech Refrigerant Recovery Machine and The Recovery Tank
REFTEC ECA500 10/3 SJOW GAUGE WIRE (NOTE : ORDER BY FT, TOTAL 50FT)
REFTEC ECA500 10/3 SJOW GAUGE WIRE (NOTE : ORDER BY FT, TOTAL 50FT)
REFTEC RAD750 5/8" FFL X 3/4" FL FLARE REDUCER (BRASS FITTINGS)
REFTEC RAD405 1/2" FFL X 5/8" FL FLARE REDUCER (BRASS FITTINGS)
REFTEC 075-020-HP-FB 3/4" X 20' HOSE/BALL VALVE
REFTEC 075-020-HP-FB 3/4" X 20' HOSE/BALL VALVE
REFTEC 075-010-HP-FB 3/4" X 10' HOSE/BALL VALVE
REFTEC 075-010-HP-FB 3/4" X 10' HOSE/BALL VALVE
REFTEC FVC-012 12' FLOAT CABLE
REFTEC FVC-012 12' FLOAT CABLE
REFTEC SPORLAN RFC048 48 CU.IN. DRIER CORE
REFTEC SPORLAN RFC048 48 CU.IN. DRIER CORE

Reftech Lite Evac High Pressure Refrigerant Recovery Unit

Download Files

Reftech_brochure_crh-asme.pdf (50.73 KB)
ASME_REFRIGERANT_TANKS.pdf (230.93 KB)
ASME_TANKS.pdf (167.44 KB)
EVAC 230 VAC Air-Cooled 1 Ph 3 HP Mounted on 1000 gallon ASME Tank

EVAC Commercial Recovery Unit

Blazing Recovery Rates to Service Chillers & Other Large Cooling Systems

• Recovers R22 at 325-lb/min liquid & 6-lb/min vapor!
• Rugged open drive compressor provides years of reliable service, even on refrigerants heavily contaminated with oil, air, moisture, & acids.    Equipped with in-line oil separator.
• Services R12, R22, R134a, R502, R410a & other high-pressure refrigerants.

Easy Operations

• Purging lines and switching from liquid to vapor recovery modes simply involves turning three 3way hand valves and rerouting one hose.

Specifications

  • Push/Pull Rates (R22) 325-lbs/min
  • Vapor Rates (R22) 6.0-lbs/min
  • Dimensions (lxwxh in inches) 32'' x 29'' x 45'' Shipping (48'' x 40'' x 51'') 406 lbs (471 lbs dual voltage)
  • Connections ¾” flare
  • Low Pressure Switch 15” Hg
  • Certifications Certified by ETL to UL-1963 standards Rated in accordance with ARI Standard 740-1998
Included with purchase

One 48-cubic inch drier core 50-ft power cord for controls
12-ft tank float cable 50-ft power cord for recovery unit
(2) 3/4”-5/8” & 5/8-1/2” fittings Two ¾” x 10ft & One ¾” x 20ft recovery hoses w/ ball valves

Accessories Under Purchase

REFTEC SPORLAN RFC048 48 CU.IN. DRIER CORE
REFTEC FVC-012 12' FLOAT CABLE
REFTEC 075-010-HP-FB 3/4'' X 10' HOSE/BALL VALVE
REFTEC 075-020-HP-FB 3/4'' X 20' HOSE/BALL VALVE
REFTEC RAD405 1/2'' FFL X 5/8'' FL FLARE REDUCER (BRASS FITTINGS)
REFTEC RAD750 5/8'' FFL X 3/4'' FL FLARE REDUCER (BRASS FITTINGS)
REFTEC EMI250 CABLE END RECEPTACLE 250V 20A (NOTE : FIXED ONTO ECA500)
REFTEC ECA500 10/3 SJOW GAUGE WIRE (NOTE : ORDER BY FT, TOTAL 50FT)
