Kyoritsu 3132A Analog Insulation Tester

AllMeasuring InstrumentKyoritsu (Japan)

Previous 13 / 13 Next

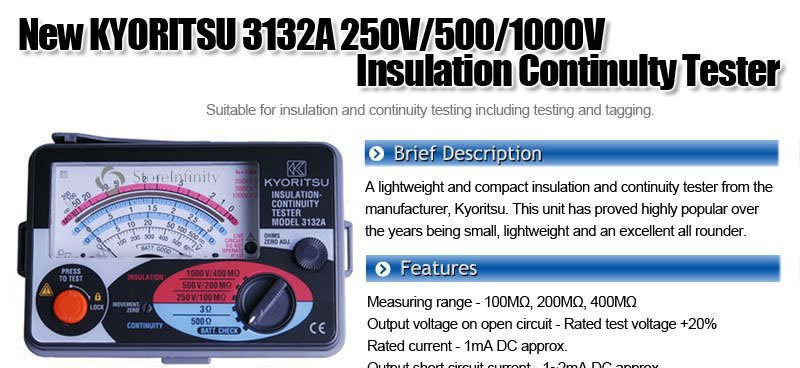

Kyoritsu 3132A Analog Insulation Tester
KYORITSU 7122B TEST LEADS 1220MM FOR ANALOG INSULATION TESTER 3132A
KYORITSU 7122B TEST LEADS 1220MM FOR ANALOG INSULATION TESTER 3132A
KYORITSU ANALOG INSULATION TESTER 3132A CALIBRATION
KYORITSU ANALOG INSULATION TESTER 3132A CALIBRATION
Kyoritsu 3132A Analog Insulation Tester
Kyoritsu 3132A Analog Insulation Tester
Kyoritsu 3132A Analog Insulation Tester

Kyoritsu 3132A Analog Insulation Tester

Note
Calibration is optional!

• Dust and drip proof construction. (designed to IEC 60529 IP54)
• Designed to meet IEC 61010-1 and IEC 61557 safety standard.
• 1mA rated test current at the minimum resistance.
• 200mA measuring current on continuity testing.
• Automatic discharge of circuit capacitance.
(Any charge stored in the circuit under test will be automatically discharged after testing.)
• Live circuit warning buzzer and neon lamp.
• Small and lightweight. Shock resistant new case material.
• AC voltmeter with linear, easy-to-read scale.
• Operates on AA, R6P×6 dry batteries.

Insulation Resistance
Test Voltage 250V/500V/1000V
Measuring Ranges
(Mid-scale Value)		 100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)
Output Voltage
on open circuit		 Rated test voltage+20%, -0%
Nominal Current 1mA DC min.
Output Short
Circuit Current		 1~2mA DC
Accuracy 0.1~10MΩ/0.2~20MΩ/0.4~40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value
Continuity
Measuring Ranges
(Mid-scale Value)		 3Ω/500Ω
(1.5Ω) / (20Ω)
Output Voltage
on open circuit		 4.1V DC approx.
Measuring Current 210mA DC min.
Accuracy |±1.5% of scale length
AC Voltage
AC Voltage 0~600V AC
Accuracy |±5% of scale length
General
Safety Standard IEC 61010-1 CAT.III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Withstand Voltage 3700V AC for 1 minute
Power Source R6P (AA) (1.5V) × 6
Dimensions 106(L) × 160(W) × 72(D)mm
Weight 560g approx.
Accessories 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6P (AA) × 6
Shoulder Strap
Instruction Manual


Accessories

KYORITSU 7122B TEST LEADS 1220MM FOR ANALOG INSULATION TESTER 3132A
