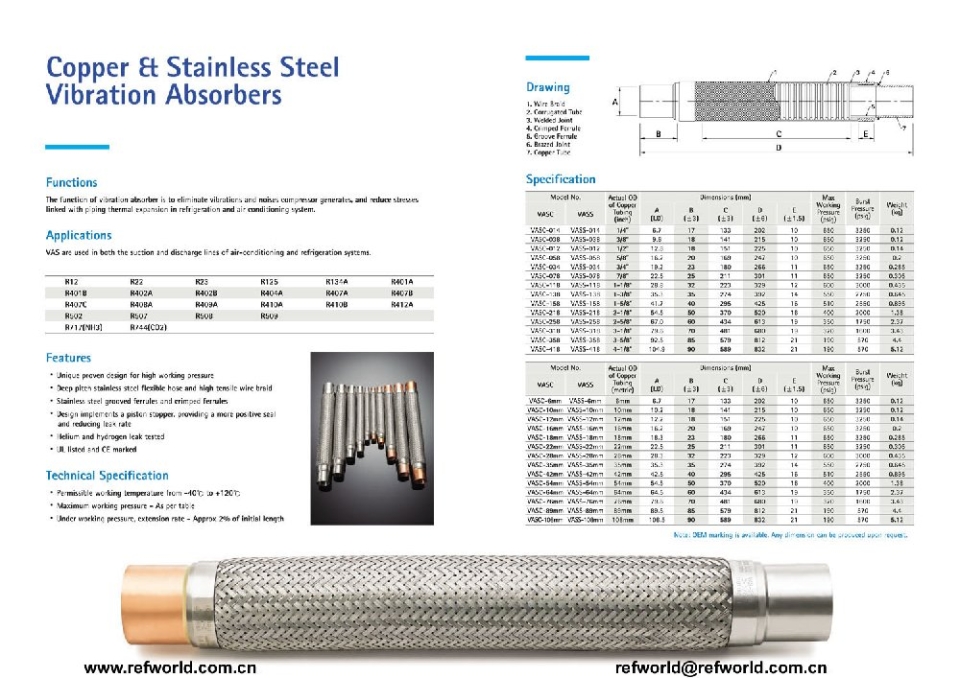

Refworld BLR/VA Vibration Absorber

AllParts, Components and AccessoriesRefworld

Previous 2 / 5 Next

Refworld BLR/VA Vibration Absorber
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-138 (1-3/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-138 (1-3/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-118 (1-1/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-118 (1-1/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-058 (5/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-058 (5/8") VIBRATION ABSORBER (S/S + COPPER)(8/12/2022)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-118 (1-1/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-258 (2-5/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-138 (1-3/8") VIBRATION ABSORBER (S/S + COPPER)
REFWORLD RW-VA-058 (5/8") VIBRATION ABSORBER (S/S + COPPER)

Refworld VA Series Vibration Absorber

Having Ex-Stock Model

REFWORLD RW-VA-058 (5/8'') VIBRATION ABSORBER (S/S + COPPER) = RM59.90 PER PC
REFWORLD RW-VA-118 (1-1/8'') VIBRATION ABSORBER (S/S + COPPER) = RM102.70 PER PC
REFWORLD RW-VA-138 (1-3/8'') VIBRATION ABSORBER (S/S + COPPER) = RM142.60 PER PC
REFWORLD RW-VA-258 (2-5/8'') VIBRATION ABSORBER (S/S + COPPER) = RM600.00 PER PC (AA48.67)

Note
19-12-2022 (40)



Feature:

* Deep pitch corrugated tubing for increasing flexibility and viberation absorption.
* Covered by high tensile wire braid for super strength
* Tubing and braid are refrorced by ferrules at each end and connected to female copper tube ends by high temperature brazing alloy.
* Each product tested then carefully vaccum tested by using highly sensitive helium mass spectrometer leak detection device.
* Each product are cleaned, dehydrated and sealed in plastic bag after final inspection.

Model Connection Dimensions Max
Working
Pressure
(psig)		 Burst
Pressure
(psig)
(inch) A
(I.D)		 B
(±1/8)		 C
(±1/8)		 D
(±1/8)		 E
(±1/8)		 F
(mm)
RW-VA-014 1/4 1/4 3/4 6-5/8 8-1/16 1/2 1.2 500 2500
RW-VA-038  3/8 3/8 13/16 6-15/16 8-9/16 1/2 1.2 500 2500
RW-VA-012  1/2 1/2 7/8 7-1/4 9 1/2 1.2 500 2500
RW-VA-058  5/8 5/8 15/16 8 9-7/8 11/16 1.2 500 2500
RW-VA-034  3/4 3/4 1-1/4 8-1/6 10-9/16 11/16 1.2 500 25000
RW-VA-078  7/8 7/8 1-7/16 9-1/8 12 13/16 1.2 500 2500
RW-VA-118 1-1/8 1-1/8 1-13/16 9-7/16 13-1/16 13/16 1.5 500 2500
RW-VA-138 1-3/8 1-3/8 2 11-1/2 15-9/16 7/8 1.5 500 2500
RW-VA-158 1-5/8 1-5/8 2-1/4 12-3/8 16-7/8 15/16 1.5 500 2500
RW-VA-218 2-1/8 2-1/8 2-3/4 15-3/16 20-5/8 15/16 2.0 390 1950
RW-VA-258 2-5/8 2-5/8 3-1/8 18-1/16 24-5/16 1-1/14 2.0 340 1700
RW-VA-318 3-1/8 3-1/8 3-7/16 20 26-15/16 1-1/12 2.0 300 1500
RW-VA-358 3-5/8 3-5/8 4-1/8 24 32-3/16 1-9/16 2.0 175 525
RW-VA-418 4-1/8 4-1/8 4-7/16 24 32-15/16 1-9/16 2.0 175 525
