TPI-9041 Ultra II Vibration Meter

AllVibration MeterTPI (Test Products International, USA)

Previous 5 / 7 Next


TPI-9041 Ultra II Vibration Meter Demonstration Video

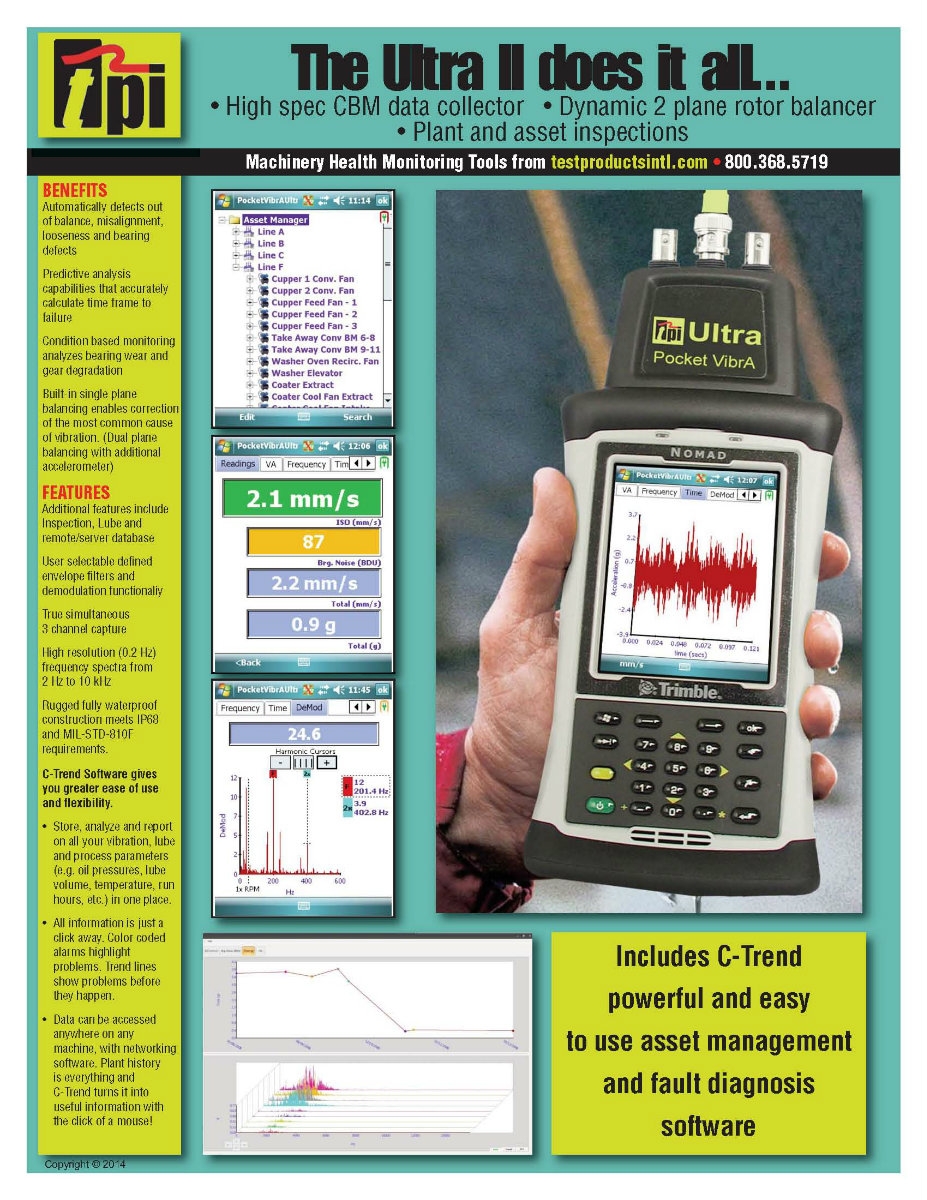

TPI-9041 Ultra II Vibration Meter



Bearing & Lubrication Problems? High Maintenance Costs? Reliability Issues?

If you have pumps, motors, fans, and/or conveyors it’s time to see how TPI Vibration Analyzers can keep your operation up and running. Protect machines from worn bearings, faulty gearboxes, unbalance, misalignment, and looseness; all of which can cause failures, increased power consumption and costly downtime.

TPI Vibration Analyzers will detect signs of machine failure, allowing machinery to be repaired or replaced before an expensive breakdown occurs.


The TPI Model 9041 Ultra II represents the very latest in easy to use high specification maintenance tools, offering extremely high levels of functionality and capability at a very affordable price! As a high spec condition based monitoring (CBM) data collector and Dynamic 2 plane rotor balancer designed for plant and asset inspections, the Ultra II does it all.

 Automatically detects out of balance, misalignment, looseness
    and bearing defects

 Predictive analysis capabilities that accurately calculate time
    frame to failure

 Condition based monitoring analyzes bearing wear and
    gear degradation

 Built-in single plane balancing enables correction of the most
   common cause of vibration. (Dual plane balancing with
   additional accelerometer)

 Additional features include Inspection, Lube and remote/server
   database

 User selectable defined envelope filters and demodulation
   functionaliy

 True simultaneous 3 channel capture

 High resolution (0.2Hz) frequency spectra from 2Hz to 10kHz

 Rugged fully waterproof construction meets IP68 and
    MIL-STD-810F requirementsquirements

 Includes C-Trend powerful and easy to use asset management
   and fault diagnosis software

Model 9041 Ultra II Software Functionality

Condition Based Maintenance data collector:

• Displays sites, assets and measurements in a “tree” structure to give easy navigation of routes and capture of readings using touch screen and numeric keypad.
• Analyses and displays ISO vibration levels, bearing wear, unbalance, misalignment, looseness etc.
• Color coded with alarm status (red, amber & green).
• Fully zoom-able frequency spectrum and time waveforms
• All data automatically downloaded to C-Trend (PC trending analysis and reporting software included as standard)
• Optional auto identification of measurement points using RFID tags with easy to use set up wizards

Single plane and two plane dynamic balancer:

• Single and two plane software included, you need an additional accelerometer A9012 for two plane balancer
• Balances to user defined grades using simple to use step by step balancing wizard
• Live vector display shows out of balance and phase angle during balancing runs (ideal for checking stability)
• Built-in tool kit for trial weight calculation, weight splitter, drill depth (for weight removal), coast down etc.
• Downloads all balance data and graphs to PC full color report generator wizard

Inspection system:

• User defined inspections can be run to capture data and trend process variables (e.g. temperature, pressure, run hours etc.) using simple wizards
• Automatic reporting and generation of email alerts for any parameter

http://www.testproductsintl.com/9041.html#.VKiUfiuUcwJ
