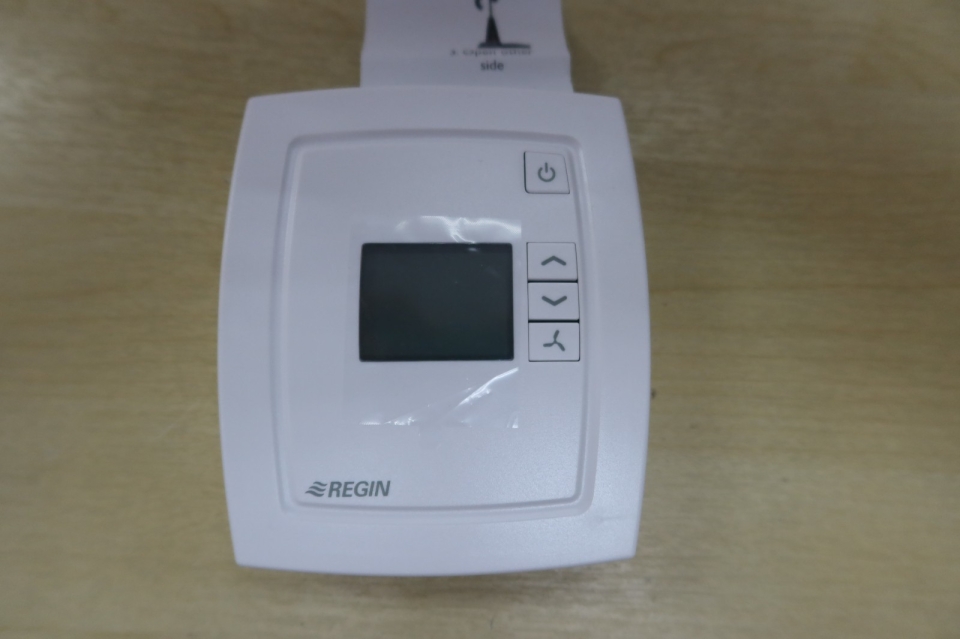

REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)

AllTemperature Display / ControllerREGIN

Previous 1 / 5 Next

REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC)Fan speed max

Download Files

RCF-230D_prsh_en.pdf (887.67 KB)
REGIN RCF-230D WALL MOUNTED LCD ON/OFF ROOM THERMOSTAT WITH FAN SPEED CONTROL (230VAC) Fan speed max is 3Amp

Room thermostat for fan-coil applications with on/off outputs.

Intended to control heating and/or cooling in 2- or 4-pipe installations. Setpoint and fan speed are set using the buttons on the front.

RCF-230D is a thermostat for controlling heating and/or
cooling in a room via on/off outputs. It also has a function
for three-speed fan control (for fan-coil).
The controller uses 230 V AC supply voltage. It has triac
outputs for 230 V AC heating/cooling and built-in
230 V AC fan relays, which means that a separate relay
module is not required for the fan and actuators.

Applications

The thermostat is suitable in buildings where you want
optimal comfort and reduced energy consumption, for
example offices, schools, shopping centres, airports, hotels,
hospitals etc.

Easy to install

Its modular design, featuring a separate bottom plate
for wiring, makes the thermostat easy to install and
commission. The bottom plate can be put into place
before the electronics are installed. Mounting takes place
directly on a wall or wall socket.

Control function

The controller controls heating and/or cooling in a room
via on/off outputs. It has a settable hysteresis and the
setpoint can be changed using the INCREASE ( ) and
DECREASE ( ) buttons on the front.
See also the section ”Display information and handling”
on page 3.

Built-in or external sensor

The thermostat has a built-in sensor. Alternatively, the
input for an external PT1000-sensor can be used.

On/off control outputs

RCF-230D has outputs for control of e.g. 230 V AC on/
off actuators.
