MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION

AllAir-Cond and Refrigeration ToolingMastercool

Previous 24 / 28 Next

MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) *SIZES APPLICATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) *SIZES APPLICATION
Mastercool Product Range With CULMI
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION

Torque Wrench InstructionsR32 Air Cond Installation With MASTERCOOL 70078 TORQUE WRENCH
MASTERCOOL 70078 TORQUE WRENCH (SIZE : 17, 22, 24, 26, 27 AND 29MM) MADE FOR R410A INSTALLATION = RM325.00 PER SET (28-02-2024=AAA24.830769)

TORQUE WRENCH

Product Description

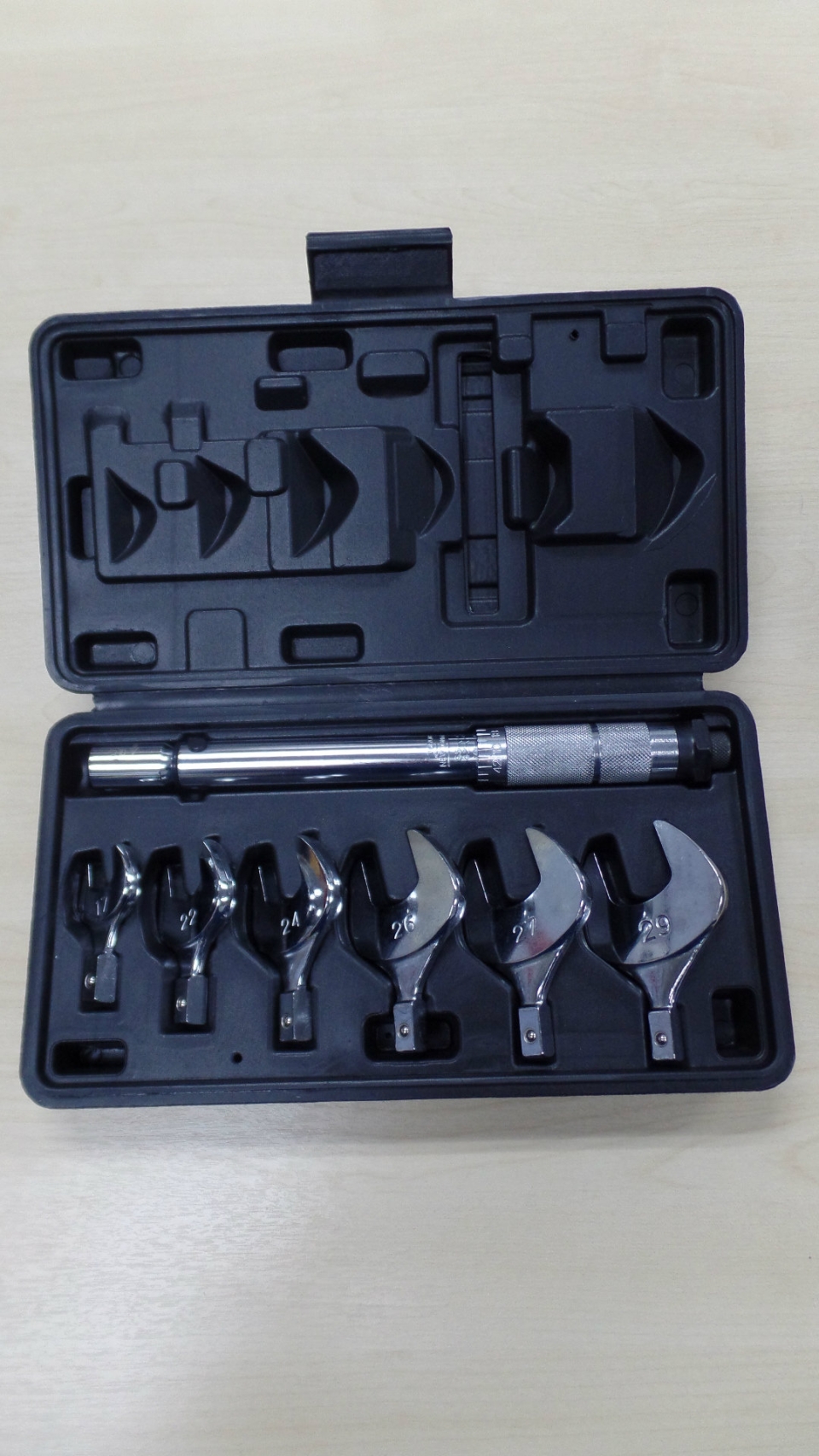

Ensures accurate tightness of fittings, especially R410A. Kit in a blow molded case includes sizes: 17, 22, 24, 26, 27 and 29mm.


Values to set Wrench
180 Kg x cm (18 Nm) Conventional torque wrench + R410A 1/4'' 17mm
420 Kg x cm (42 Nm) Conventional torque wrench + R410A 3/8'' 22mm
550 Kg x cm (55 Nm) Conventional torque wrench 1/2'' 24mm
550 Kg x cm (55 Nm) R410A 1/2'' 26mm
650 Kg x cm (65 Nm) Conventional torque wrench 5/8'' 27mm
650 Kg x cm (65 Nm) R410A 5/8'' 29mm

Operation Instruction:
 • for values of 10, 18, 42: slowly rotate the knurled handle until the  10, 18, 42 mark on the handle coincides with the vertical scale.
 • for values of 55, 68, 75: slowly rotate the knurled handle until the 0  mark on the handle coincides with the vertical scale.

            Setting           Vertical Scale Mark             Handle Mark
100 kg x cm (10Nm)              10                                      10
180 kg x cm (18Nm)           16/18                                16/18
420 kg x cm (42Nm)               42                                     42
550 kg x cm (55Nm)               55                                      0
650 kg x cm (65Nm)               65                                      0
750 kg x cm (75Nm)               75                                      0

Optional Wrench Sizes Available:

70078-19: 19mm
70078-25: 25mm
70078-28: 28mm
70078-32: 32mm
